L-Flex Creative
Outdoors Soft / Flexible LED Display Modules
Applicable for: Cylindrical Columns, Curved Walls, Wave Shapes, Museums, Galleries.
Pixel Pitch : 2.5 mm
Module Size: 320 x 160 mm 320 x 160 mm
Pixel Density: 160,000 /m²
Module Res: 128 x 64 dots
Brightness: 4500 nits
Refresh Rate: 1920/3840 Hz
Product Features
◎ Extreme Flexibility: Made of high-quality flexible PCB and silicone rubber mask, capable of achieving concave, convex, and wave shapes effortlessly.

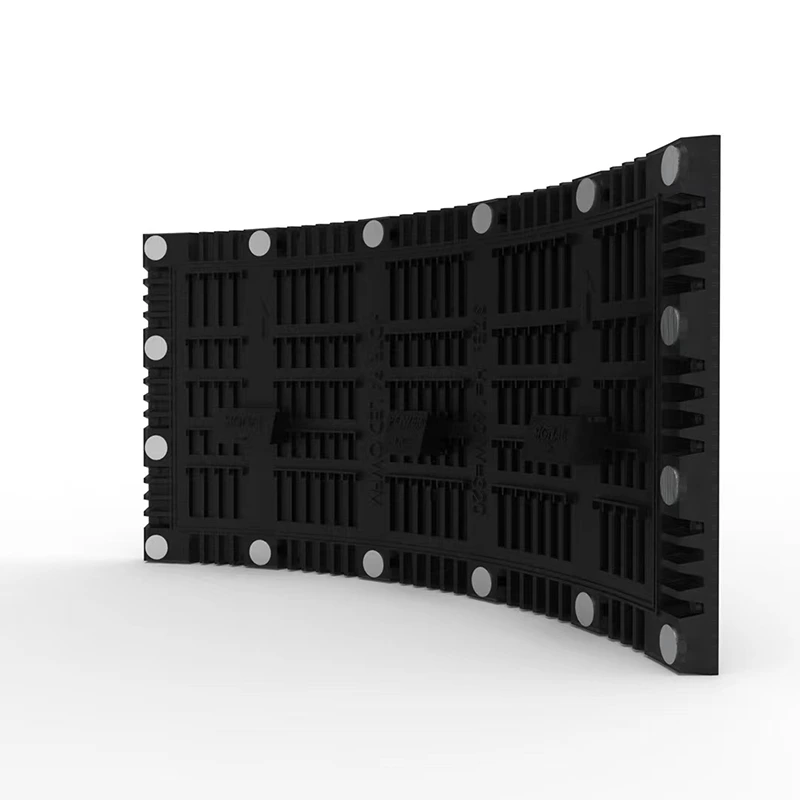

◎ Magnetic Installation: Strong magnets embedded in the module allow for quick and easy "Click-in" installation on customized metal frames.
◎ Ultra-Thin & Lightweight: Thickness less than 10mm (module only), reducing the load on the building structure.
◎ Seamless Curved Splicing: Perfect for creating smooth cylindrical screens or artistic curves without visible gaps.
◎ High Serviceability: 100% Front Maintenance design.
Technical Specifications
|
Parameter / Model |
Flex 2.5 |
Flex 3.0 |
Flex 4.0 |
Flex 5.0 |
|
|
|
|
Pixel Pitch |
2.5 mm |
3.076 mm |
4.0 mm |
2.0 mm |
|
|
|
|
Module Size |
320 x 160 mm |
320 x 160 mm |
320 x 160 mm |
320 x 160 mm |
|
|
|
|
Pixel Density |
160,000 /m² |
105,625 /m² |
62,500 /m² |
250,000 /m² |
|
|
|
|
Module Res. |
128 x 64 dots |
104 x 52 dots |
80 x 40 dots |
160 x 80 dots |
|
|
|
|
Brightness |
4500 nits |
5000 nits |
5500 nits |
6000 nits |
|
|
|
|
Refresh Rate |
1920/3840 Hz |
1920/3840 Hz |
3840Hz |
3840 Hz |
|
|
|
|
Max Power |
600 W/m² |
550 W/m² |
450 W/m² |
600 W/m² |
|
|
|
|
|
0.45 kg |
0.45 kg |
0.45 kg |
0.45 kg |
|
|
|
|
Min. Diameter |
≥500 mm |
≥500 mm |
≥500 mm |
≥500 mm |
|
|
|
|
Bending Angle |
Concave/Convex |
Concave/Convex |
Concave/Convex |
Concave/Convex |
|
|
|
|
Maintenance |
Front Magnetic |
Front Magnetic |
Front Magnetic |
Front Magnetic |
|
|
|
|
Waterproof Rating |
IP65 |
IP65 |
IP65 |
IP65 |
|
|
|
|
Input Voltage |
5V DC |
5V DC |
5V DC |
5V DC |
|
|
|
Installation Guide & Calculation
Example: To build a cylinder using P2.5 modules (320mm width), if you use 10 modules for one circle:
Diameter = (320mm × 10) / 3.1416 ≈ 1018mm (1.02 meters).
