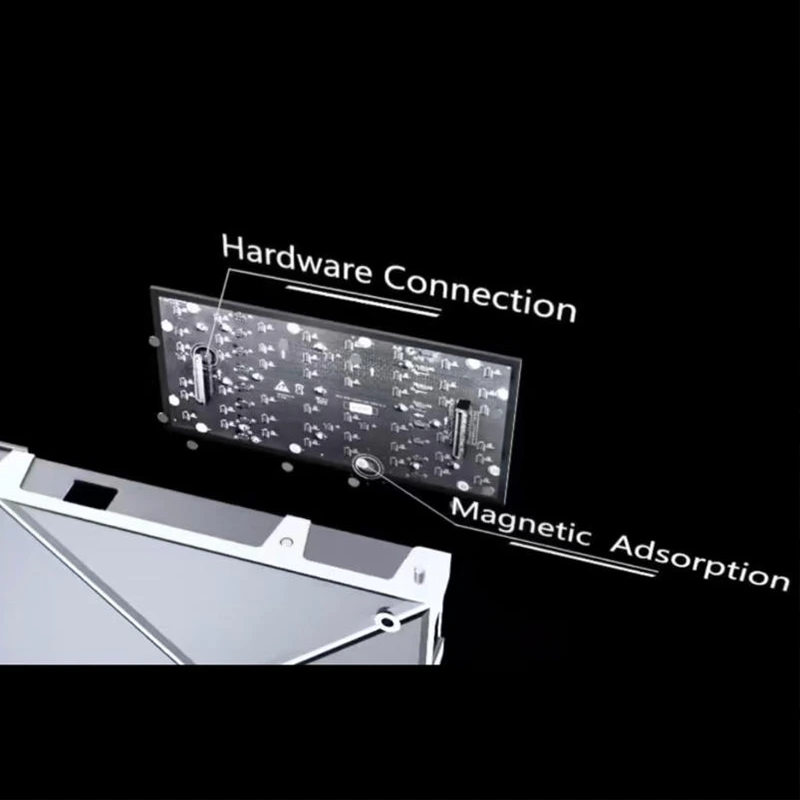

L-Fix Series | Indoor Fixed Installation LED Display Screen 1

L-Fix Series | Indoor Fixed Installation LED Display Screen 2

L-Fix Series | Indoor Fixed Installation LED Display Screen 3

L-Fix Series | Indoor Fixed Installation LED Display Screen 4

L-Fix Series | Indoor Fixed Installation LED Display Screen

Transform your indoor space with the L-Fix Series. Engineered for retail stores, conference rooms, and houses of worship, this series offers breathtaking 4K visuals with a slim, wall-mounted design.

High Refresh Rate: 3840Hz for flicker-free broadcasting.

Front Maintenance: Magnetic tool design for easy service.

Inquiry

Write a Review

Why Choose L-Fix Series?

Front Maintenance

Blend Into Architecture

Magnetic modules allow for 100% front service. No rear space needed.

Ultra Slim & Light

Die-cast aluminum cabinet design saves steel structure costs.

Visual Excellence

3840Hz refresh rate & 16-bit grayscale for true-to-life colors.

Silent Operation

Fanless design ensures zero noise. Perfect for churches & meetings.

Technical Specifications

Parameter / Model	P1.86	P2	P2.5	P3	P4
Pixel Pitch	1.86 mm	2.0 mm	2.5 mm	3.076 mm	4.0 mm
LED Type	SMD1515	SMD1515	SMD2121	SMD2121	SMD2121
Pixel Density	289,000 dots/m²	250,000 dots/m²	160,000 dots/m²	105,600 dots/m²	62,500 dots/m²
Module Size	320 x 160 mm	320 x 160 mm	320 x 160 mm	320 x 160 mm	320 x 160 mm
*Cabinet Size (WH)**	640 x 480 mm	640 x 480 mm	640 x 480 mm	640 x 480 mm	640 x 480 mm
Cabinet Material	Die-cast Aluminum	Die-cast Aluminum	Die-cast Aluminum	Die-cast Aluminum	Die-cast Aluminum
Cabinet Weight	7.5 kg/panel	7.5 kg/panel	7.5 kg/panel	7.5 kg/panel	7.5 kg/panel
Brightness	600-800 nits	600-800 nits	800-1000 nits	800-1000 nits	1000+ nits
Refresh Rate	≥3840 Hz	≥3840 Hz	≥3840 Hz	≥1920/3840 Hz	≥1920 Hz
Grayscale	14-16 Bit	14-16 Bit	14 Bit	14 Bit	14 Bit
Contrast Ratio	5000:1	5000:1	5000:1	3000:1	3000:1
Viewing Angle	160°/160°	160°/160°	140°/140°	140°/140°	140°/140°
Maintenance	Front Access	Front Access	Front Access	Front Access	Front/Rear
Max Power	600 W/m²	600 W/m²	600 W/m²	500 W/m²	450 W/m²
Avg Power	200 W/m²	200 W/m²	200 W/m²	180 W/m²	150 W/m²
IP Rating	IP30 (Indoor)	IP30 (Indoor)	IP30 (Indoor)	IP30 (Indoor)	IP30 (Indoor)
Lifespan	>100,000 Hours	>100,000 Hours	>100,000 Hours	>100,000 Hours	>100,000 Hours
Input Voltage	AC 110V/220V ±10%	AC 110V/220V ±10%	AC 110V/220V ±10%	AC 110V/220V ±10%	AC 110V/220V ±10%

Installation & Gallery

Flexible Installation Methods

The L-Fix series supports multiple mounting options to fit your venue perfectly:

◎ Wall Mounting: Directly mount on the concrete wall with expansion screws.

◎ Recessed Installation: Fit the screen inside the wall for a flat surface finish.

◎ Hanging: Use hanging bars for truss systems (optional).

Indoor Screen Magnetic Mounting Diagram (3)

FAQ about Indoor LED Video Wall

Question: What is the best pixel pitch for my room?

Answer: It depends on the viewing distance. For a church or conference room where people sit 2-3 meters away, P2 or P2.5 is the best choice. If the distance is >5 meters, P3 or P4 is more cost-effective.

Question: How long is the warranty?

Answer: LSON LED offers a standard 3-year warranty for all indoor fixed LED displays. We provide free spare parts (modules, power supply, cables) with the shipment.

Question: Is it difficult to install?

Answer: Not at all. We provide a complete steel structure drawing and installation manual. For the L-Fix series, the magnetic design makes assembly very fast.

Question: Can you ship to my country?

Answer: Yes, we export to over 80 countries including the USA, UK, Germany, Saudi Arabia, and Nigeria. We can handle shipping via Air or Sea (DDP/CIF).
