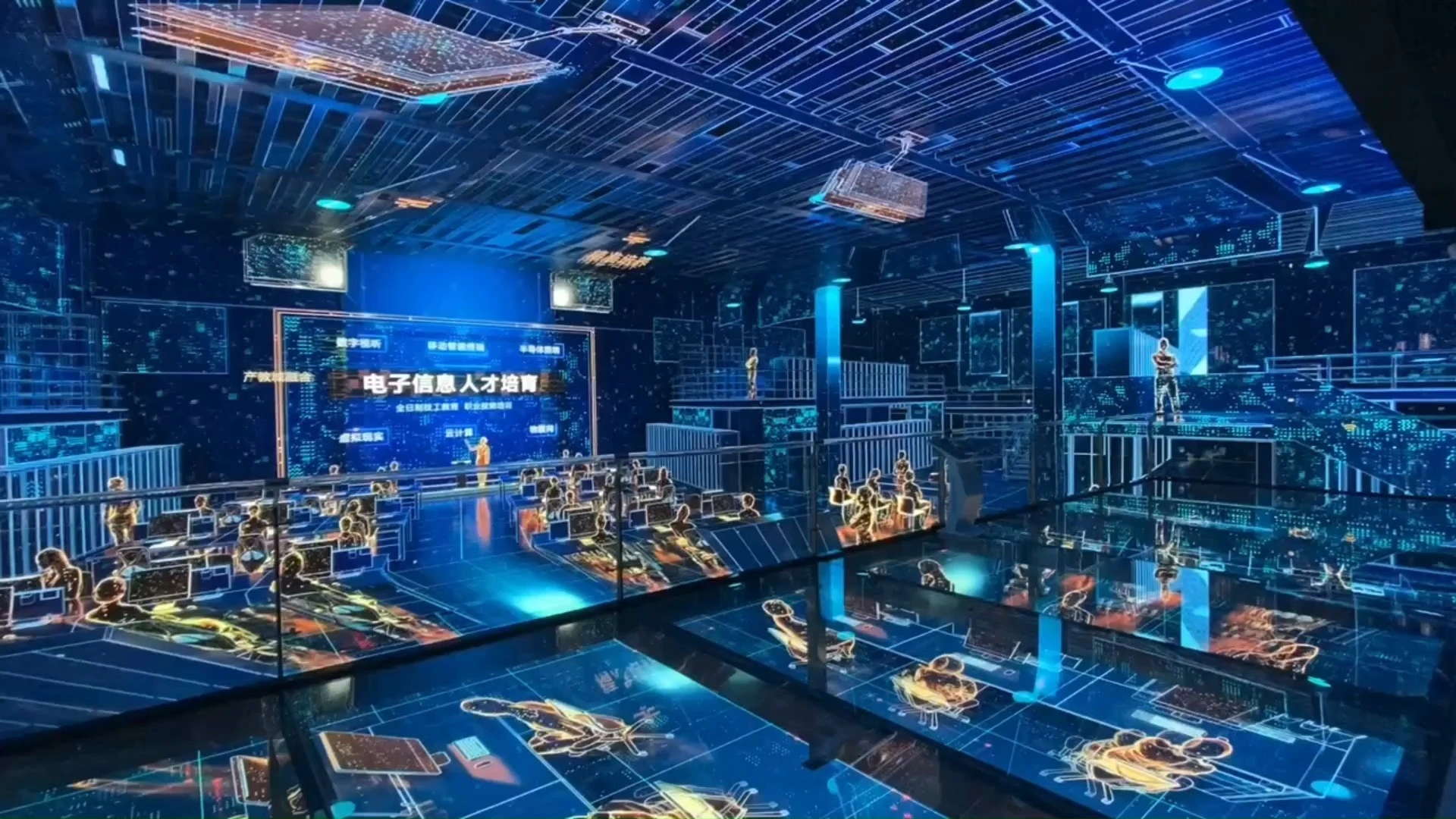

L-HD Series | Indoor Fine Pitch LED Display Screen (UHD Video Wall) 1

L-HD Series | Indoor Fine Pitch LED Display Screen (UHD Video Wall) 2

L-HD Series | Indoor Fine Pitch LED Display Screen (UHD Video Wall) 3

L-HD Series | Indoor Fine Pitch LED Display Screen (UHD Video Wall) 4

L-HD Series | Indoor Fine Pitch LED Display Screen (UHD Video Wall) 5

L-HD Series | Indoor Fine Pitch LED Display Screen (UHD Video Wall)

Experience the future of display technology with the L-HD Series. Designed for mission-critical environments, our Fine Pitch LED Displays offer crystal-clear imagery, seamless splicing, and 24/7 reliability.
Unlike traditional LCD walls, the L-HD Series has no bezels (zero seams), providing a truly immersive visual experience. It is the top choice for Control Rooms, TV Studios, and High-End Boardrooms.

Available in P0.9 / P1.2 / P1.5 / P1.8. Perfect 16:9 Ratio for 2K, 4K, and 8K Resolutions.

Inquiry

Write a Review

Product Features

Perfect 16:9 Cabinet Design

Each cabinet measures 600x337.5mm, strictly following the 16:9 golden ratio. This allows you to easily build standard FHD (1080p), 4K, and 8K screens pixel-to-pixel without complex video processing or distortion.

True-to-Life Picture Quality

Equipped with high-end driver ICs, the L-HD Series supports HDR (High Dynamic Range) and a high refresh rate of 3840Hz. It delivers deep blacks, vivid colors, and smooth motion, ensuring no flicker or scanning lines under professional broadcast cameras.

24/7 Mission-Critical Reliability

For command centers where data cannot be lost, we offer optional Power and Signal Dual Backup. If one power supply or receiving card fails, the backup automatically takes over instantly, ensuring the screen never goes black.

Advanced COB / GOB Protection

Upgrade to COB (Chip on Board) technology for superior protection. It provides a dust-proof, collision-proof, and easy-to-clean surface, while offering a softer light output that reduces eye fatigue during long-term viewing.

Technical Specifications

Parameter	L-HD 0.9	L-HD 1.2 (Hot)	L-HD 1.5	L-HD 1.8
Pixel Pitch	0.93 mm	1.25 mm	1.56 mm	1.87 mm
LED Type	Mini LED / COB	SMD1010	SMD1212	SMD1515
Resolution/m²	1,137,778 dots	640,000 dots	409,600 dots	284,444 dots
Cabinet Size	600 x 337.5 mm	600 x 337.5 mm	600 x 337.5 mm	600 x 337.5 mm
Brightness	600-800 nits	600-800 nits	800-1000 nits	800-1000 nits
Refresh Rate	3840 Hz	3840 Hz	3840 Hz	3840 Hz
Contrast Ratio	6000:1	5000:1	5000:1	4000:1
Maintenance	Full Front Access	Full Front Access	Full Front Access	Full Front Access

Application Scenario

smart city data visualization P1 (2)

Automotive Sales Exhibition Backdrop Wall

7680Hz Ultra-High Refresh Rate (2)

Broadcasting & TV Studios

FAQ for Fine Pitch

What is the difference between SMD and COB?

SMD is the standard technology with excellent color consistency. COB (Chip on Board) seals the LED chips directly on the PCB, offering higher contrast, wider viewing angles, and better physical protection (crash-proof).

How do I achieve 4K resolution?

With our P1.25 model, a layout of 6.4m (W) x 3.6m (H) naturally achieves a perfect 4K (3840x2160) resolution.

Is it suitable for long-time viewing?

Yes. We use low-brightness & high-gray scale technology, so the screen is bright enough but won't hurt your eyes like high-brightness outdoor screens.
